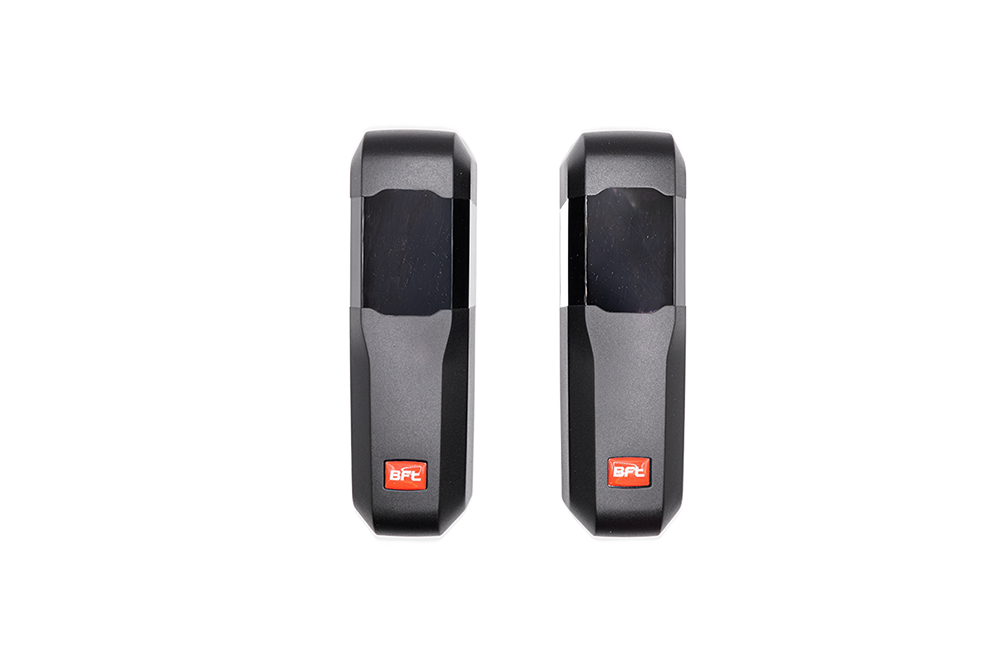

BFT Compacta A20-180 Photocell PE Safety Beam

Key Features & Benefits

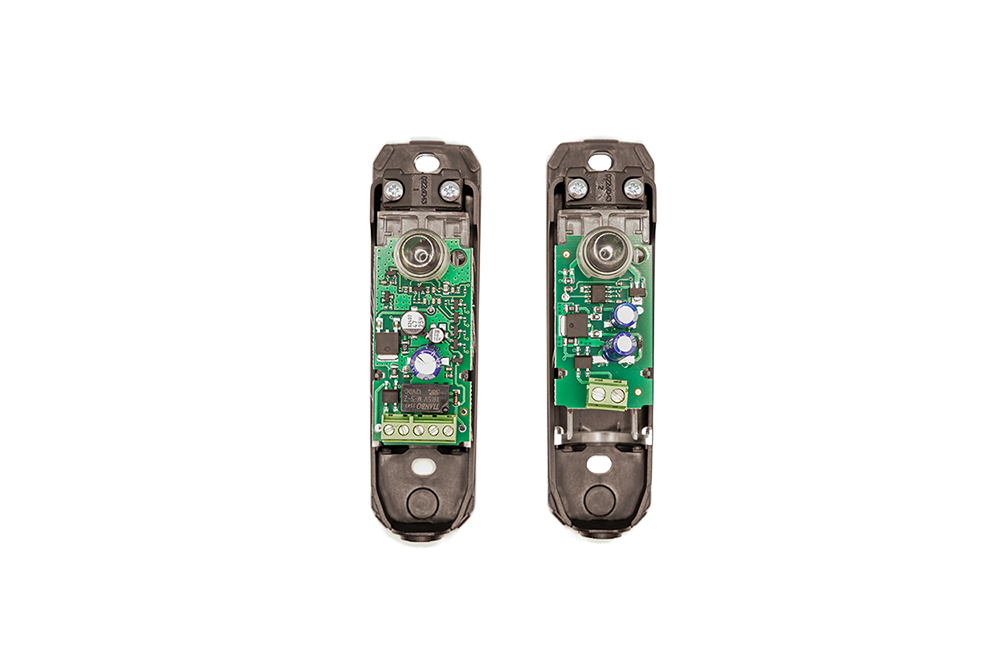

• 180° Swivel Design: The internal optics can rotate 90° to the left or 90° to the right. This allows you to mount the sensors on the front of pillars rather than the inside, or handle misaligned posts without extra brackets.
• Slim Profile: At only 33mm wide, these sensors are among the most compact on the market, fitting easily onto narrow gate posts or square tubing.
• Extended Range: With a 20-meter reach, they are suitable for even the widest commercial or residential entrances.
• High-Speed Detection: A sub-30ms response time ensures the gate reverses almost instantly when an obstruction is detected.
• Universal Compatibility: While optimized for BFT systems (like Thalia, Merak, or Rigel boards), they can be used with almost any gate opener brand that supports standard NC/NO safety inputs.

Package Includes

• 1 x Transmitter (TX) Unit
• 1 x Receiver (RX) Unit
• 1 x Set of Mounting Screws
• 1 x Instruction Manual

Manual Download
