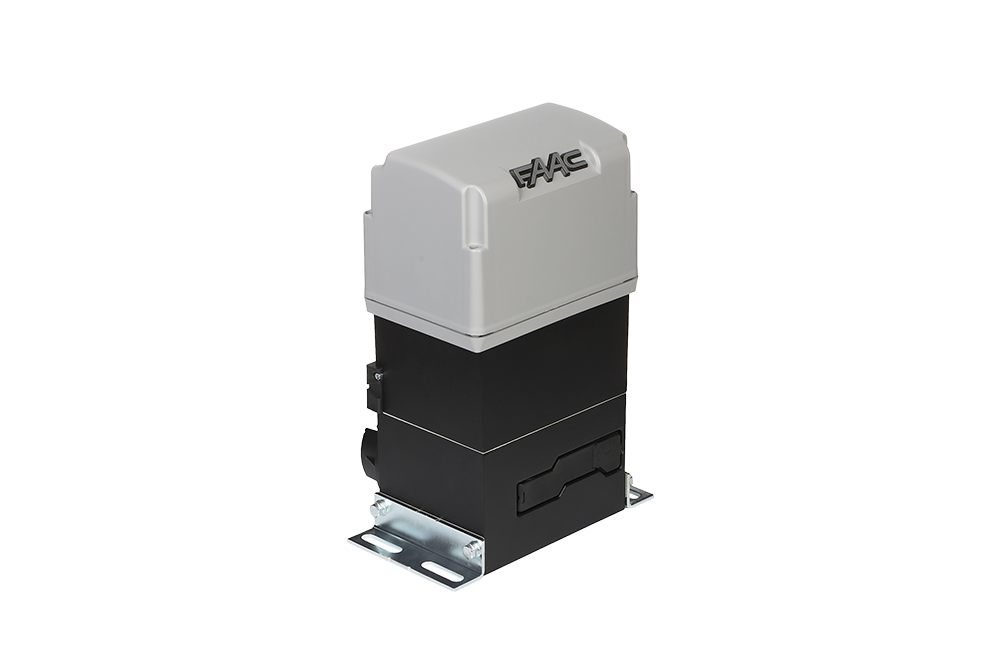

FAAC 844 Sliding Gate Motor
Specifications:
- Type gate: sliding gate
- Max gate weight: 1800kg
- Power supply: 230V AC 50(60) Hz
- Motor Power Supply: 230 Vac
- Absorbed power: 660W
- Absorbed current: 3.6A
- Traction and thrust force: 0 - 1160N (pinion Z16)
- Motor rotation speed: 1400rpm
- Reduction ration: 1:30
- Weight with Oil: 14.7kg
- Gate speed: 9.5m/min (pinion Z16)
- Protection class: IP44
- Type of Oil: FAAC HP Oil
- Operating ambient temperature: -20°C to +55°C
- Limit switch: Magnetic / Inductive
- Clutch: Twin-disk in Oil-Bath
Kit Contains:
- 1x 844 Industrial Gearmotor
