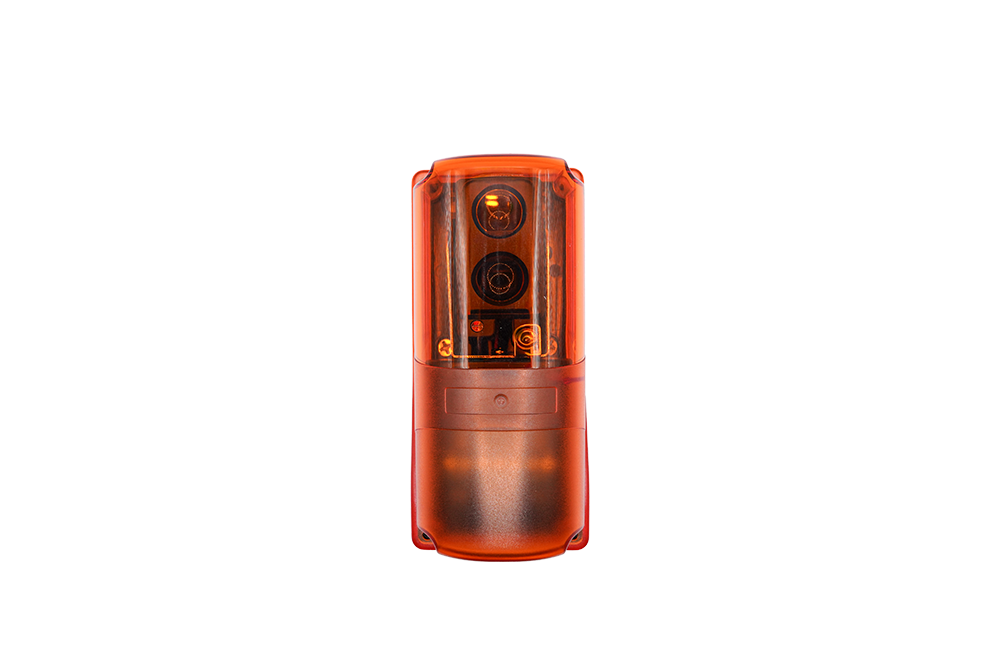

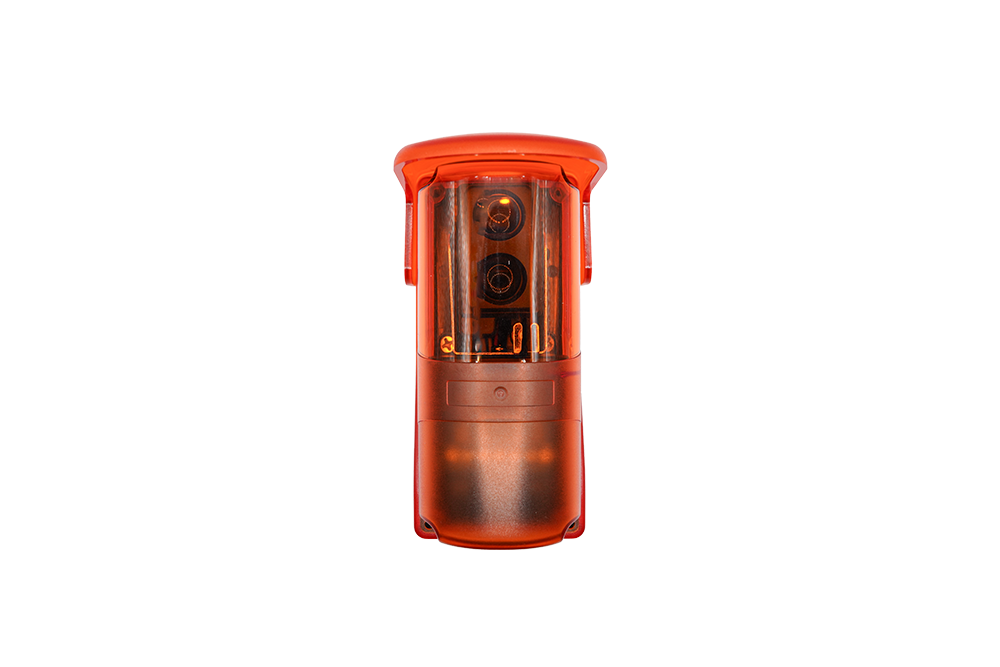

Universal Reflector Photocell Long Range Safety Beam

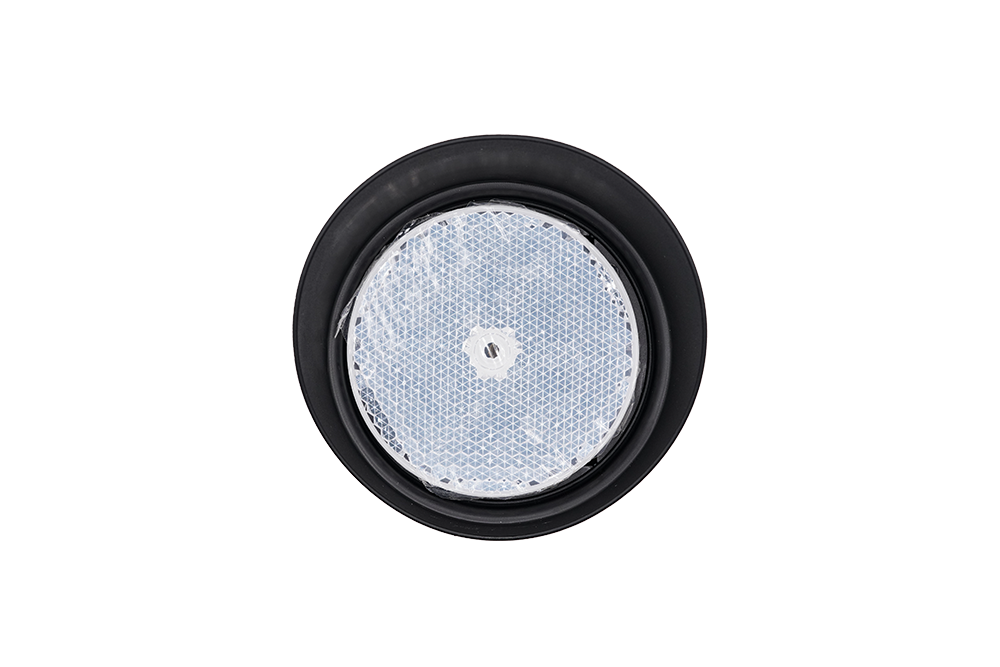

A Reflector Photocell is an integrated photoelectric sensor that combines both transmitter and receiver into a single housing. By utilising a retro-reflective principle with a dedicated reflector, it effectively detects obstacles, changes in surface colour, or object proximity, simplifying installation and wiring.
Specifications:
- Operating Voltage: AC9V~24V (AC Frequency: 45~60HZ,Imax=15mA); DC12V~24V(Imax=38mA)
- Working current: <38mA@12VDC (Relay on) <20mA@12VDC(Relay off)
- Induction distance: <10m
- Sensitivity: Fixed
- Reaction time: about 30mS
- Ambient light intensity: Max.5000lux
- Emission tube parameters: wavelength: 740nm; luminous type: visible red light
- Relay:Load parameter: AC 3A/125VAC; DC 3A/30VDC Coil parameters: DC9VDC (Imax=20mA)
- LED indicator light: Green LED lamp: 1). Power switch; 2). Light flash indicates weak signal Red LED lamp: working status signal (on / off: working signal valid / invalid)
- Operating temperature: -20℃~ + 70℃
